West Covina S.W.A.T. Team High school class project
This project started out as a high school attempt at designing a Tactical robot for the West Covina S.W.A.T. Team in Southern California. Officer Brian Prizzi of the W.C.P.D. approached the class with the idea and then solicited money and parts for the robot. The Machine Lab was asked to help the high school students design this machine to aid in tactical operations such as surveillance, inspection, negotiations, equipment/food delivery and object retrieval/disposal.
This was an ambitious project for the school and they ended up with a lack of time and resources to finish it. Officer Prizzi asked TML to finish the machine to its fullest potential while considering its "shoe-string" budget.
We accepted the challenge of finishing the design of the drive train, arm mechanics, and electrical control of 14 different functions. The robot is battery powered and operated via. a wireless controller.

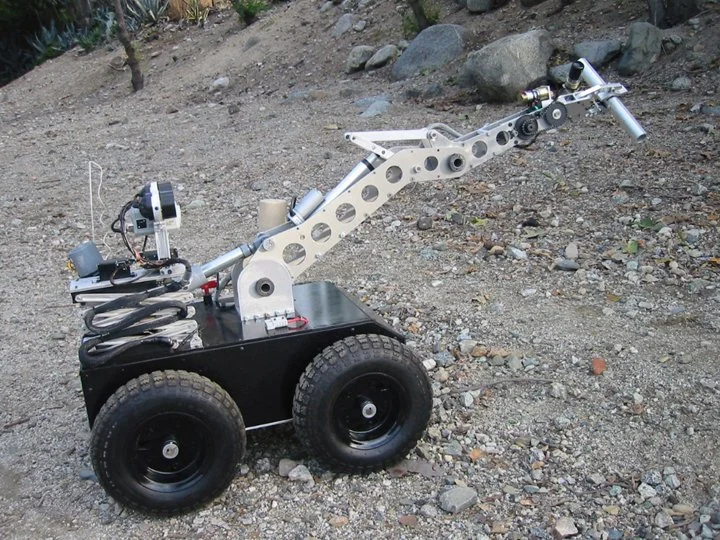

The robot can climb curbs, peek into windows, open doors, see in total darkness, manipulate suspicious objects and carry a payload.
The West Covina Police Department immediately realized the potential of such a versatile tool and has already incorporated the robot into its training exercises.
The Robot was named BULLDOG after the West Covina High School's mascot. Hopefully Bulldog will give the W.C.P.D. the ability to carry out its missions more efficiently and more safely.
BULLDOG Tactical Robot Specs.
Power:24 Volt Gel Lead Acid Batteries (2 hours run time)
Weight:150 lbs
Speed:6 ft/sec.

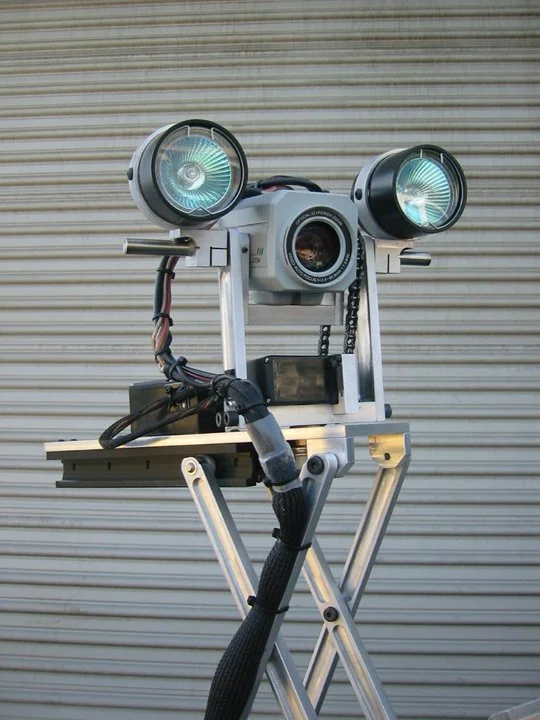

Vision:1 Color 200X Zoom Pan/Tilt Camera, 1 Color/B&W Infrared camera, Audio is also transmitted to operator via Microphone

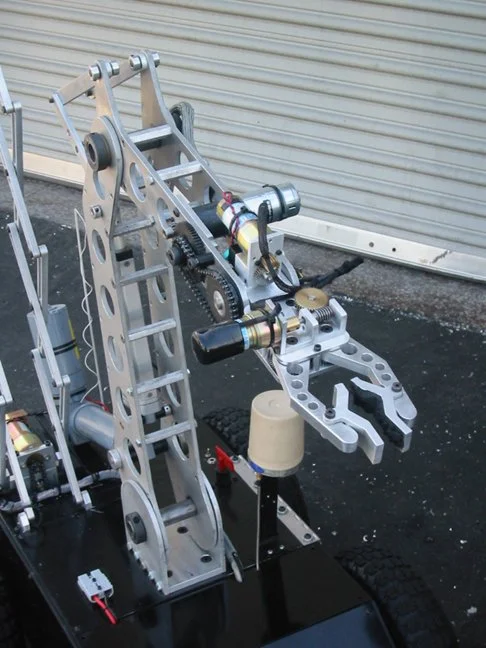

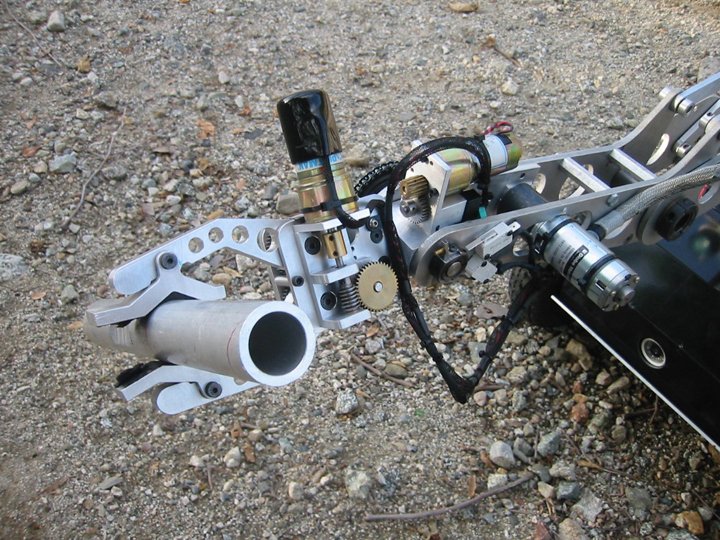

Arm:Shoulder 120 degrees Elbow 180 degrees Wrist UP/DOWN 180 degrees Wrist rotate 270 degrees Gripper open/close, Reach of 40 inches, Can lift 50 pounds retracted, Can lift 15 pounds fully extended, Can open doors

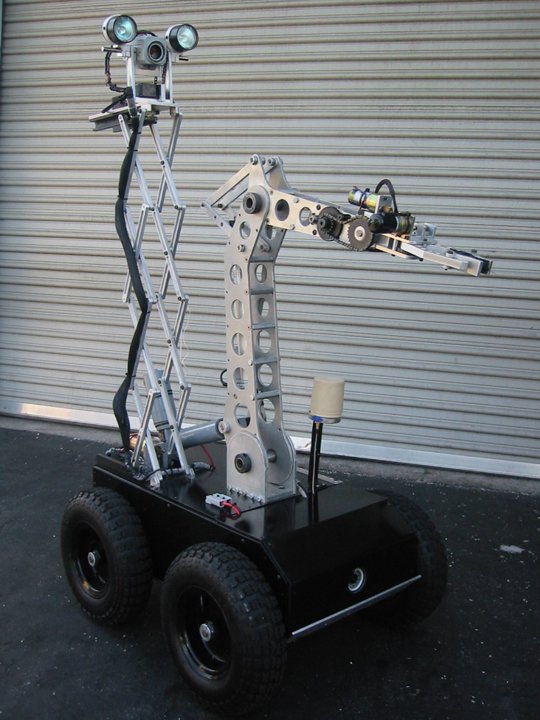

Scissor Lift:30 inches of lift for Pan/Tilt/Zoom Camera
Lights:2 x 40 watt halogen flood lights
