West Covina SWAT team

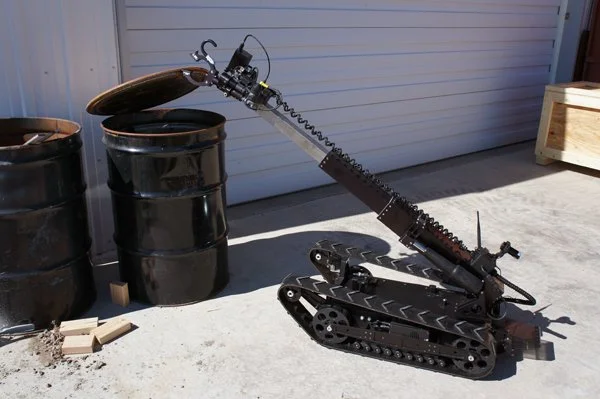

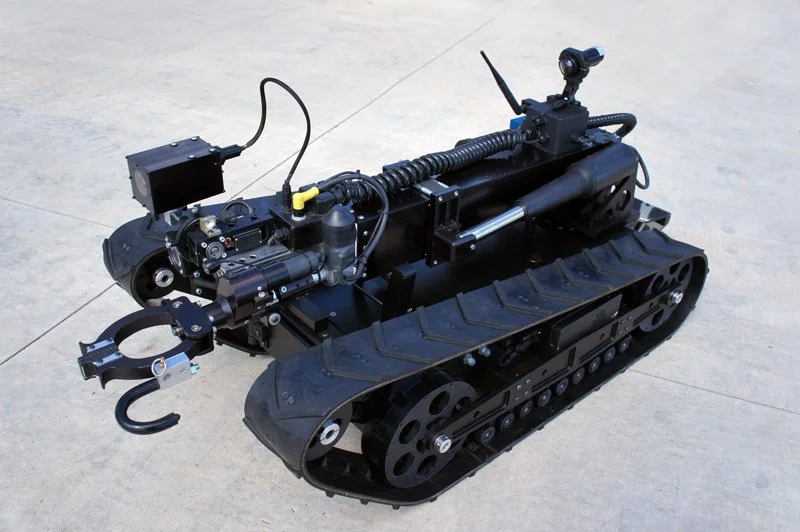

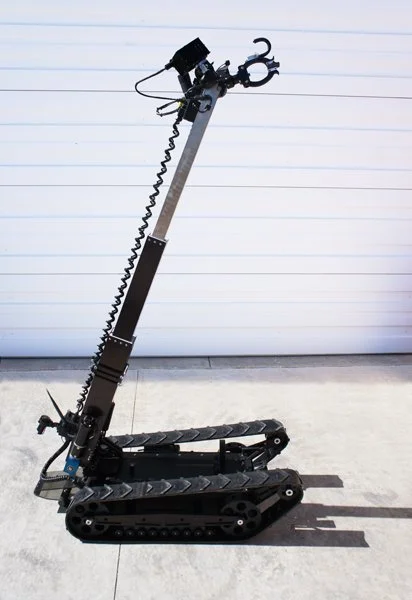

TML’s prototyping lab built this robot for the West Covina SWAT team in Southern California. The robot has a 5 axis telescoping arm that can extend over 4 feet from its original length. The arm can lift 15 pounds fully extended and can reach a total height of almost 6 feet. The gripper is accompanied by a 220X Zoom/Pan/Tilt camera and a wide angle gripper-focused camera and a retrieval hook. There are several detachable tools that can either be grasped by the gripper or manually attached in a matter of seconds.

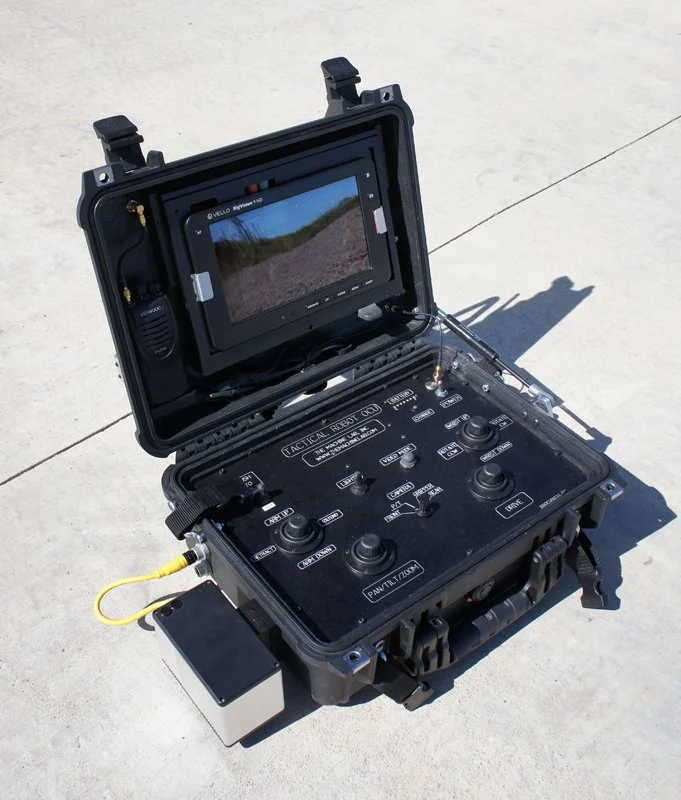

The custom Operator Control Unit has true hot swappable batteries, a built in battery charger, 2-way audio with blue-tooth headset, 4-camera quadplexing, and dual 3-axis joysticks for arm control which give the operator precise control of all the arm joints simultaneously. This robot can climb stairs and see over privacy fences. It weighs in at only 125 pounds and has a speed of 3.5 ft/sec. It has a run time of approximately 4 hours depending on mission profile and can be deployed in less than 1 minute.
